Product Specifications
Physical | |
Weight | 1.98 kg |
Size | 22.1 cm L × 16.0 cm W × 8.5 cm H |
Noise Level | 49 dB @ Setting 2 |
Use | Designed for Continuous Use |
Performance | |
Oxygen Flow Settings (Pulse) | Pulse Dose Delivery System, Up to 5 |
Maximum Minute Volume Output | Setting 1: 210 mL/min; Setting 2: 420 mL/min; Setting 3: 630 mL/min; Setting 4: 840 mL/min; Setting 5: 1000 mL/min |
Oxygen Concentration | 90% ±6% at all settings |
Warm-up Time | 2 minutes |
Display | |

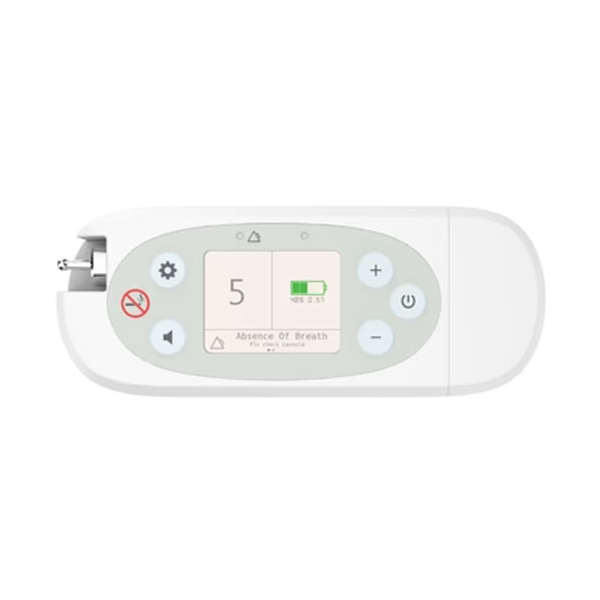

Display Screen | 2.8 inches |
Battery | |
Battery Backup | Single Battery: Up to 5 hours; Double Battery: Up to 10 hours |
Recharge Time | 4 hours (2.5 hours with external charger) |
Battery Specs | Voltage: 14.4 VDC; Rated Capacity: 6.7 Ah |
Power | |
Power Supply | AC Input: 100–240 VAC, 50–60 Hz; DC Input: 11–16 VDC; DC Output: 19 V, 6.3 A |
Certifications & Standards | |
Quality Standards | FDA, CE, FAA Approved |
In-Flight Use | Approved |
Other Specifications | |
Warranty | 3 years (Main Unit), 1 year (Battery and Sieve Bed) |
This table lists product specifications and features.
FAQs
Can the Oxymed P2 deliver continuous flow Oxygen?
No, the Oxymed P2 is a pulse flow portable oxygen concentrator, designed to deliver oxygen in bursts when you inhale. It is not intended for continuous flow delivery.
Can I use the Oxymed P2 while charging?
Yes, you can use the Oxymed P2 while it is connected to AC or DC power. This allows you to continue oxygen therapy even while the battery is charging.
How long does the battery last on a full charge?
Battery life depends on the flow setting. At setting 1, the battery can last up to 4 hours, and it will be shorter at higher settings. Always check your user manual for the exact duration per setting.
How do I clean the Oxymed P2 concentrator?
Clean the exterior of the device weekly with a damp cloth and mild household cleaner. Clean the pre-filter weekly and ensure it is fully dry before reinstalling. Replace the air inlet filter every 12–24 months or as needed.
Can I travel with the Oxymed P2?

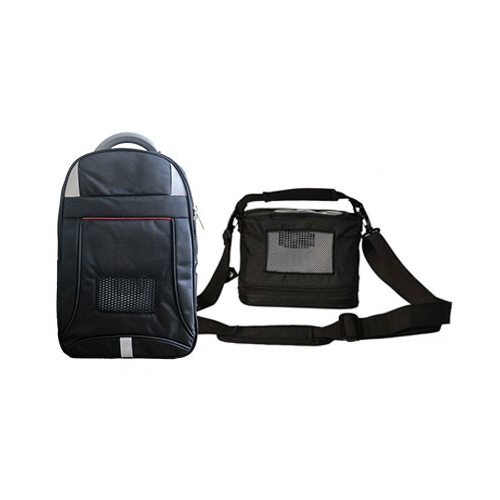

Yes, the Oxymed P2 is lightweight, FAA-compliant, and ideal for travel. Use the provided carrying case, and ensure you have charged batteries and power adapters for your destination.
