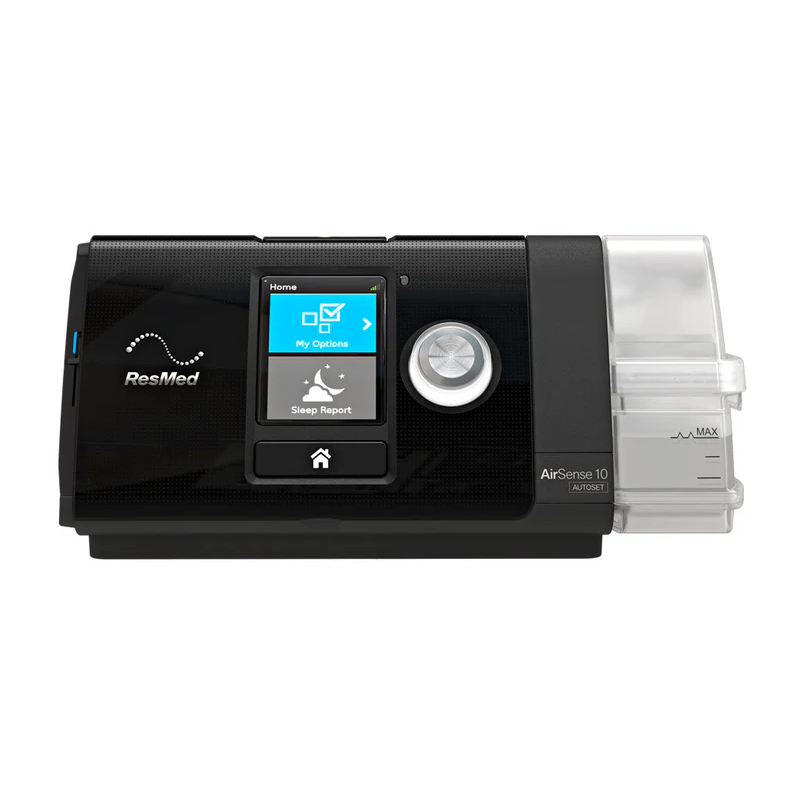

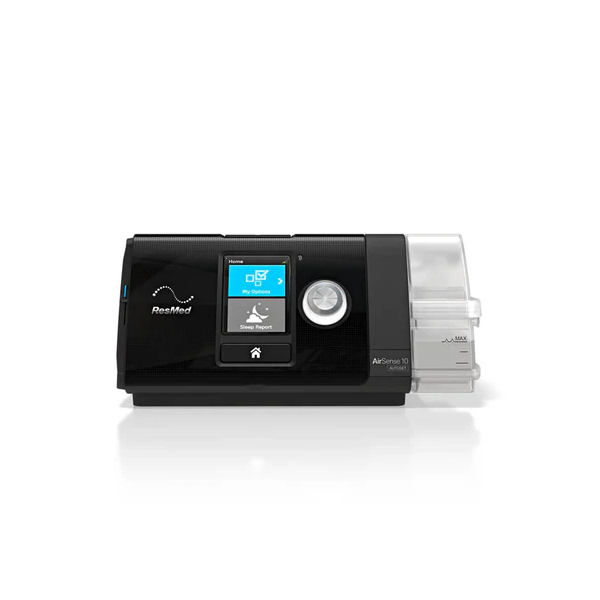

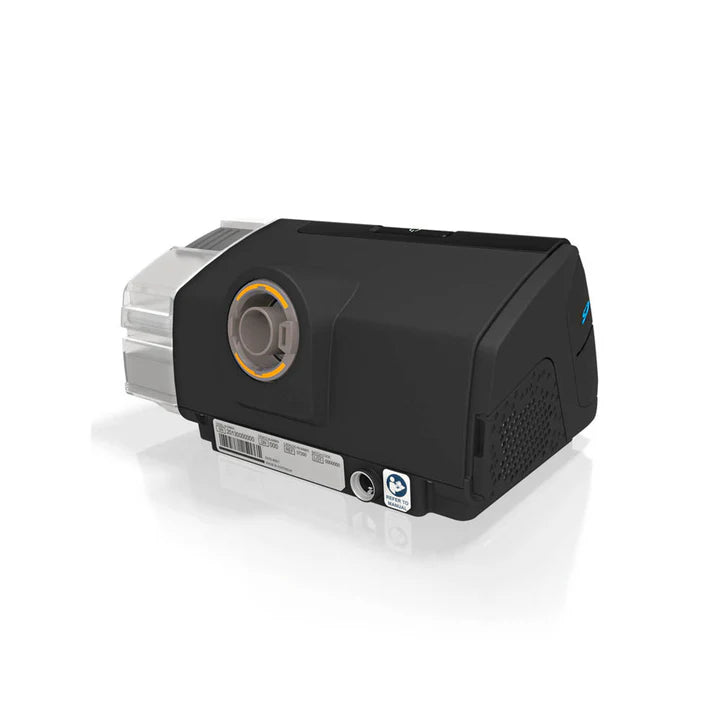

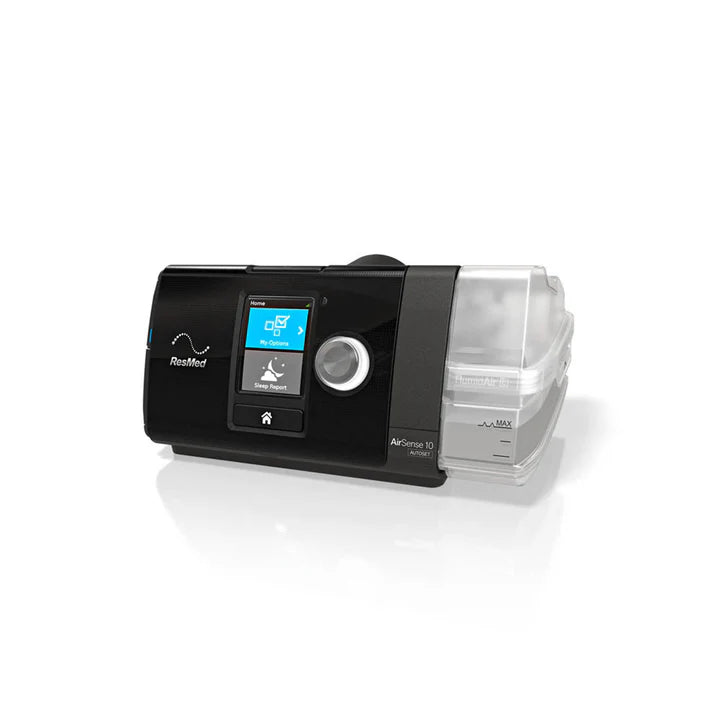

Product Specifications
| Physical | |
| Dimensions | 11.6 cm H × 25.5 cm W × 15 cm D |
| Air Outlet | 22 mm |
| Weight | 1.3 kg |
| Water Capacity | Max 380 ml |
| Performance | |
| Pressure Range | 4 to 20 cm H₂O |
| Maximum Supplemental Oxygen Flow | 4 L/min |
| Sound | 25 dBA to 35 dBA |
| Power | |
| AC Input Range | 100–240 V, 50–60 Hz, 1.0–1.5 A; 115 V, 400 Hz, 1.5 A (nominal for aircraft use) |
| DC Output | 24 V, 3.75 A |
| Typical Power Consumption | 53 W (57 VA) |
| Peak Power Consumption | 104 W (108 VA) |
| Environmental Conditions | |
| Operating Temperature | 5° C to 35° C |
| Operating Humidity | 10 to 95% RH (non-condensing) |
| Storage & Transport Temperature | –20° C to 60° C |
| Storage & Transport Humidity | 5 to 95% RH (non-condensing) |
| Other Specifications | |
| Warranty | 2 years |
| Expected Service Life of Device | 5 years |
This table lists product specifications and features.
FAQs
How do I adjust the comfort features – humidity and ramp time – on my AirSense 10?
Your AirSense 10 machine has been set up for your needs by your medical equipment supplier – the CPAP store where you picked up your equipment. But, understandably, you may want to make small adjustments based on your comfort needs. Here are some tips on how to adjust the comfort settings.

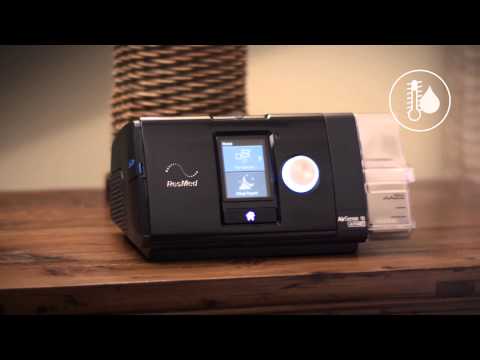

On your AirSense 10 machine, rotate the dial to highlight My Options and press the dial to see your current settings. From here, you can personalise your options.

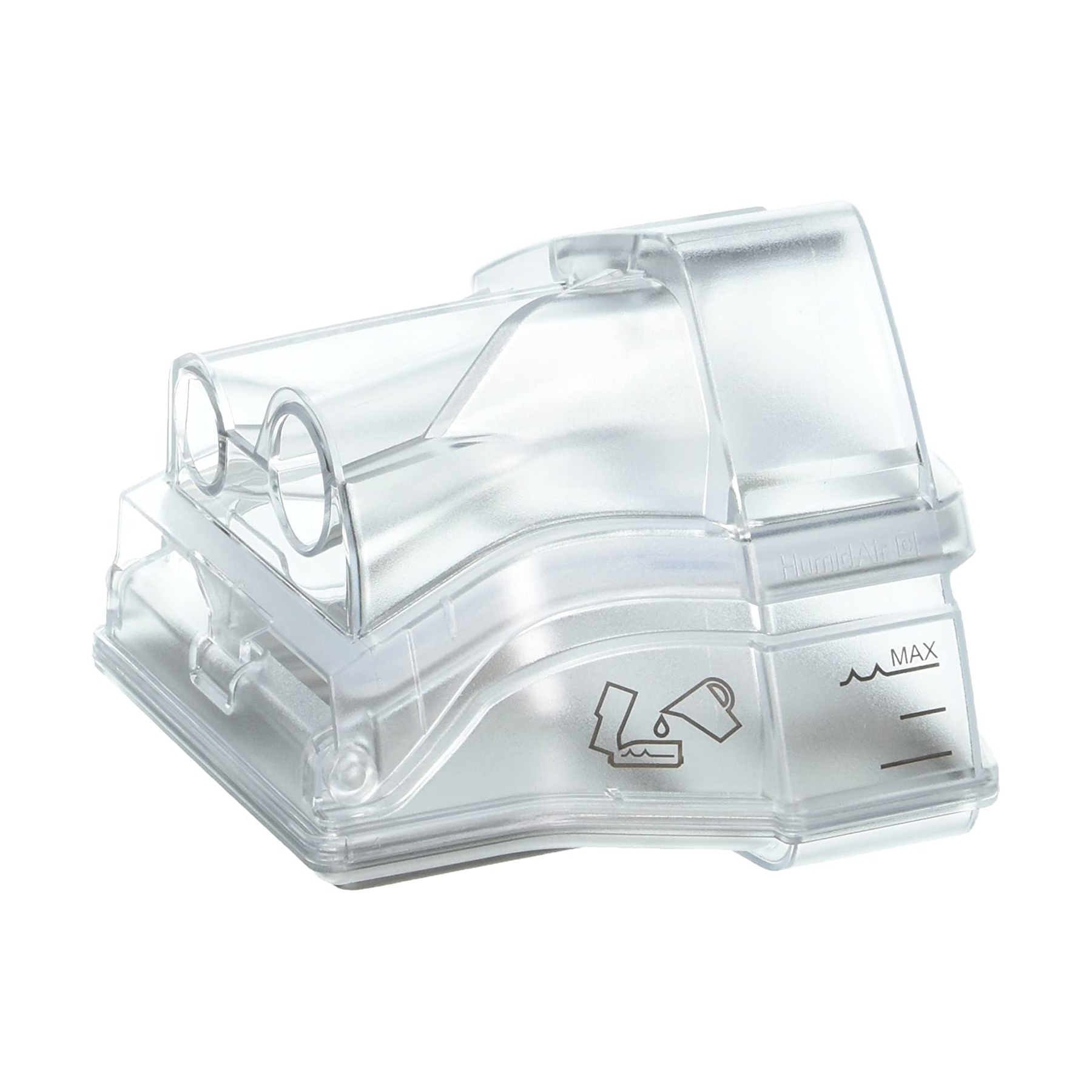

Humidity Level
The humidifier moistens the air and is designed to make your therapy more comfortable. With the Climate Control enhanced Auto setting, both temperature and humidity are automatically preset at levels designed for maximum comfort; all you have to do is plug it in and press Start.

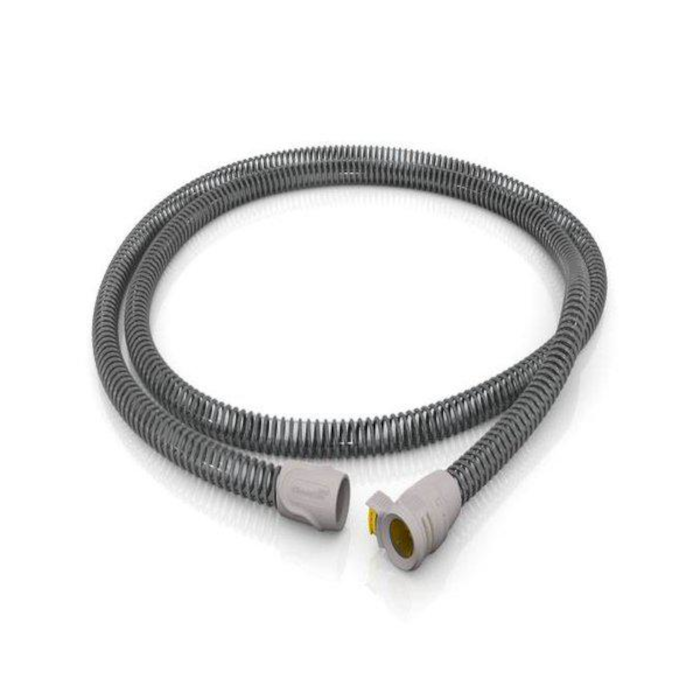

You can also manually set the Humidity Level to Off or between 1 and 8 (1 = lowest, 8 = highest). Note: if you’re using a ClimateLineAir™ heated tube, you will need to turn the Climate Control setting from “Auto” to “Manual” to access the humidity setting.
If you’re getting a dry nose or mouth, turn up the humidity. If you’re getting any moisture in your mask, turn it down.
How to adjust humidity:
- In My Options, turn the dial to highlight Humidity Level and press the dial.
- Turn the dial to adjust the humidity level.
- Press the dial again to save the change.

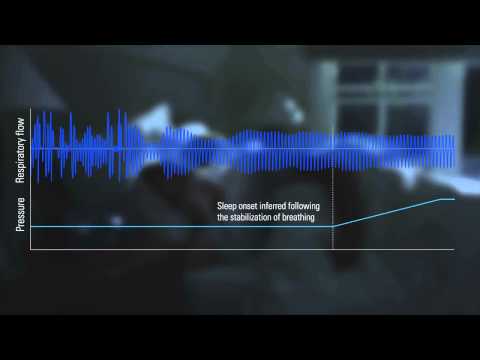

Ramp Time
Ramp Time is designed to make the beginning of therapy more comfortable. It gradually increases airflow pressure from a low starting point to your prescribed treatment pressure. You can set Ramp Time to Off, or between 5 and 45 minutes.
How to adjust Ramp Time:
- In My Options, turn the dial to highlight Ramp Time and press the dial.
- Turn the dial to adjust the ramp time to your preferred setting.
- Press the dial again to save the change.
Need more help with your comfort settings? Your medical equipment supplier can help make additional adjustments if needed.
How do I clean my CPAP machine, and how often?
You should clean your CPAP machine weekly to maintain proper hygiene and ensure effective therapy.
How to clean your AirSense machine:
Time it takes: 5 minutes
Supplies you’ll need:
- Sink or tub
- Warm, drinking-quality water (86°F / 30°C)
- Dish soap
- Clean towel
Weekly step-by-step cleaning tips:
- Unplug the machine from the power source.
- Wash the water tub and air tubing in warm water using mild detergent. Do not wash in a dishwasher or washing machine.
- Rinse the water tub and air tubing thoroughly and allow them to dry out of direct sunlight and/or heat.
- Wipe the exterior of the device with a dry cloth or towel.
Can I use an ozone device to clean my ResMed machine?
ResMed has observed that prolonged and repeated use of an ozone device may eventually cause internal damage to a ResMed machine, leading to an increase in motor noise. The ResMed limited warranty excludes damage to ResMed machines caused by the use of ozone devices.
Which ResMed masks are compatible with AirSense 10?
While ResMed masks are designed to be compatible with most ResMed machines, it is best to confirm compatibility for your specific mask to determine the correct mask setting for your machine.
Here’s a list of recommended compatible masks:
Full face masks:
- AirFit™ F30i
- AirFit F30
- AirTouch™ F20
Nasal/nasal pillow masks:
- AirFit N30
- AirFit N30i
- AirFit P10
For the most up-to-date details, check the ResMed Mask Compatibility List (PDF).
