ResMed

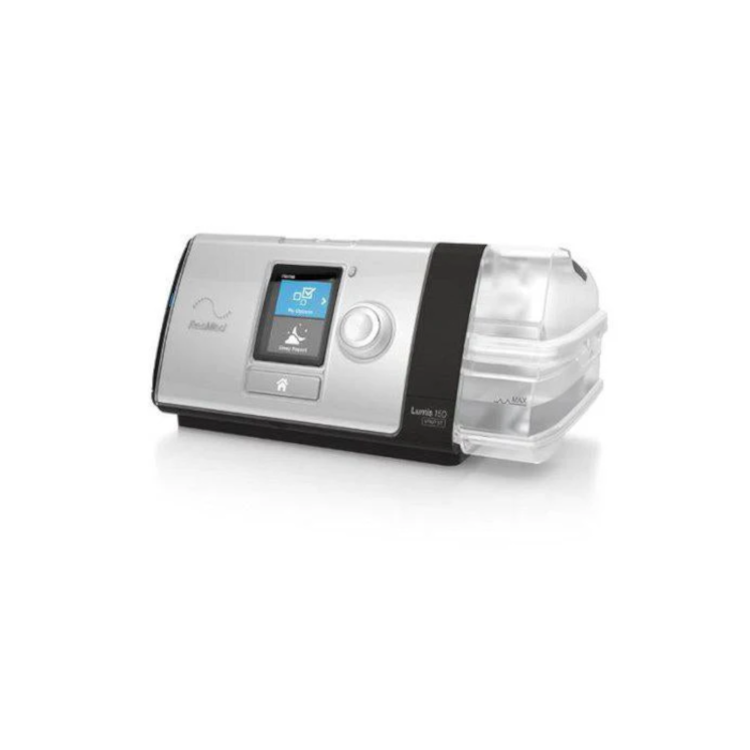

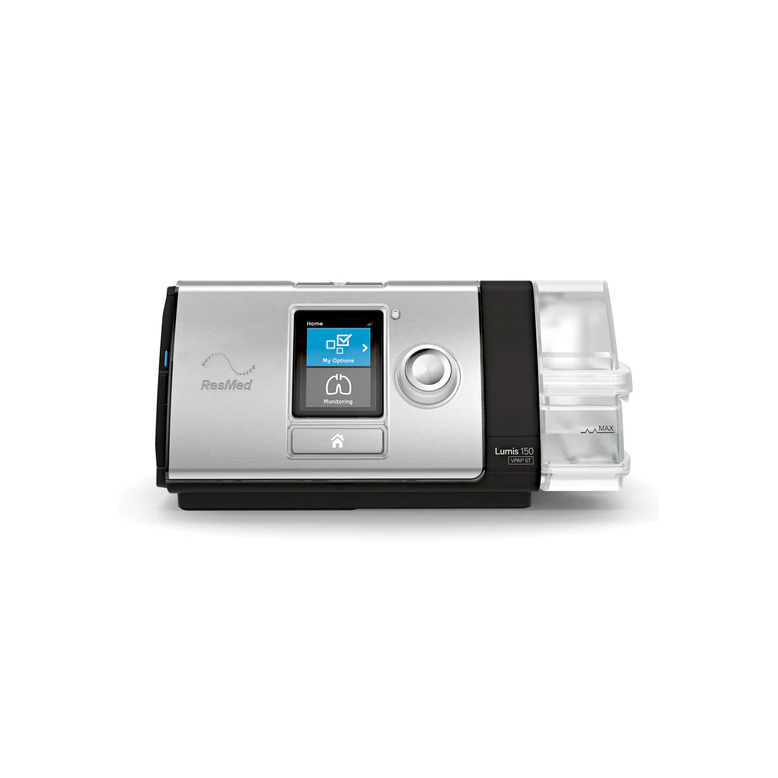

Lumis 150 VPAP ST Non-Invasive Ventilator Tripack 4G

Lumis 150 VPAP ST Non-Invasive Ventilator Tripack 4G

28125

Rs. 75,950.00
Rs. 75,950.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock

ResMed Lumis 150 VPAP ST is a noninvasive ventilator specifically designed for non-dependent patients with obstructive or restrictive respiratory conditions. ResMed's unique volume-assurance mode, iVAPS (intelligent Volume-Assured Pressure Support), makes personalised ventilation easy by maintaining target alveolar ventilation to suit each patient's changing needs. Plus, with an intelligent Backup Rate (iBR) and the option for AutoEPAP, iVAPS continuously monitors ventilation and the upper airway.

Key Features

iVAPS learns each patient’s unique alveolar ventilation, sets appropriate targets, then provides smooth pressure support to suit.

Intelligent Backup Rate (iBR) gives patients the maximum opportunity to trigger the ventilator. Staying out of the way until needed, iBR adds backup breaths to comfortably bring patients back to target. Available in iVAPS and ST modes.

What's in the box

Device
HumidAir™ humidifier

User Manual
Travel bag
Power cord (IND)
Power cord (AUS)
Power supply unit
SD card (already installed)
ClimateLineAir™ Air tubing
Disposable filter (already installed)

Warranty

The manufacturer warrants the unit to be free from defects in materials and workmanship under normal use and operation for a period of two (2) years from the date of purchase. This warranty does not cover the accessories. Any defective part(s) will be repaired or replaced at the manufacturer's option if the unit has not been tampered with or used improperly during that period.
This warranty does not cover damage caused by accident, misuse, abuse, alteration, water ingress, or other defects not related to material or workmanship, and is not extended to the cost of labour incurred in repairing or replacing defective part(s).
To initiate a warranty claim, you can contact us at order-support@respmart.com with "WARRANTY CLAIM" in the subject line. We may reach out to verify the claim before issuing a replacement or return approval.
For approved warranty claims, we’ll take care of the shipping cost to send your replacement or repaired product. We kindly ask that you cover the cost of sending the original product back to us for inspection and verification.

Shipping

We at Respmart.com make every effort to ensure you have a smooth and enjoyable shopping experience, including timely order processing and delivery. All orders placed are processed promptly. We make every effort to process and ship your order within 3 business days from the date of purchase. If you have any questions or concerns regarding the status of your order, please contact our support team at order-support@respmart.com
Kindly refer to our Shipping Policy for full details and conditions here.

Return

We at Respmart.com make every effort to ensure that the product you purchase arrives in perfect condition. However, in the unlikely event of a damaged, defective or wrong item delivered, please inform customer service via email on order-support@respmart.com within 48 hours of the delivery along with images of the delivered product.
Kindly refer to our Return and Refund Policy for full details and conditions here.

Operational Care

Place the device on a stable and horizontal surface when operating. Make sure the air vent openings are not obstructed; never place the unit on a soft surface, such as a bed or couch, where the air opening may be blocked
Only use compatible parts and seek an authorised service centre for maintenance needs. Never open the device; there are no serviceable parts within the unit.
Cleaning the Device
To avoid electrical shock, turn off and disconnect the device before cleaning it with a damp cloth and mild household cleaner. DO NOT immerse the device in any fluids.
Rinse the reusable pollen filter every two weeks and replace it every six (6) months.
Wash the humidifier and air tubing in warm water using mild detergent. DO NOT wash in a dishwasher or washing machine.
Rinse the humidifier and air tubing thoroughly and allow to dry out of direct sunlight and/or heat.
Wipe the exterior of the device with a dry cloth.
⚠ Cautions
DO NOT install a wet filter into the device. You must ensure sufficient drying time for the filter.
View full details

Want to learn more?

Click below to dive into product specifications, FAQs, manuals, brochures and other similar models — all in one place.

Learn more

Product Features

  • AutoEPAP Feature

    AutoEPAP maintains upper airway patency by auto-adjusting the expiratory pressure in response to partial and full obstructions. Available in iVAPS mode.

  • Vsync Feature

    Vsync provides excellent patient–ventilator synchrony, even in the presence of significant leak.

  • TiControl™ Feature

    TiControl™ lets you set min and max limits on either side of the patient’s ideal inspiratory time to encourage spontaneous breathing.

  • Trigger and Cycle Feature

    Trigger and cycle help you optimise settings according to the patient’s condition, using five trigger and cycle sensitivity levels.

  • QuickNav for low-touch therapy adjustment

    By simply double-clicking the home button on the device, you can toggle between the Settings and Monitoring screens to change and check settings quickly and easily.

  • Climate Control Auto for automatic humidification

    When used with a HumidAir™ heated humidifier and ClimateLineAir™ heated tube, Lumis delivers humidification automatically – no settings to change and no complicated menus to navigate.

1 6

Specifications

  • AC input range - 100/240 VAC, 50/60 Hz,1.0/1.5A, Class 2 115V, 400 Hz, 1.5A(nominal for aircraft use)

    DC output - 24 VDC, 3.75 A

    Typical power consumption - 53 W (57 VA)

    Peak power consumption - 104 W (108 VA)

    Operating temperature - 5°C to 35°C

    Operating humidity - 10 to 95% RH, non-condensing

    Operating altitude - Sea level to 2,591 m; air pressure range 1013 hPa to 738 hPA

    Storage and transport temperature - -20°C to 60°C

    Storage and transport humidity - 5 to 95% RH, non-condensing

    Ingress protection - IP22

  • Dimensions - 11.6 cm H x 25.5 cm W x 15 cm

    Air outlet - 22 mm

    Weight - 1.34 kg

    Water capacity - max 380 mL

    Sound Pressure level - max 35dBA ± 2dBA

    Operating modes and pressure range - S, ST, T, PAC, iVAPS: 2 to 30 cm H₂O; CPAP: 4 to 20 cm H₂O

    Supplement oxygen - max 15 L/min (S, ST, T, PAC, CPAP); max 4 L/min (iVAPS)

1 2

FAQs

Q: Where should I place the device for optimal use?

A: Place the device on a firm, flat surface within easy reach of where you will use it and at a level lower than your sleeping position.

Q: Can I put the system in checked baggage when travelling?

A: No, the carrying case is designed for carry-on luggage only. It will not protect the system if it is put through checked baggage.

Q: Can I travel with my ResMed Lumis 150 VPAP ST device?

A: Yes, you can travel with your Lumis device. Use the provided travel bag to protect it from damage. Empty the humidifier chamber and pack it separately. Make sure to carry the appropriate power cord for your destination’s region—you can contact your care provider for assistance. If you’re using an external battery, it's recommended to turn off the humidifier by setting the Humidity Level to Off to extend battery life.

Q: How can I make the security process easier when travelling with the system?

A: The device is safe to be transported and used in flight. There is a note on the bottom of the device stating that it is medical equipment and suitable for airline use. Bringing the manual may also help security personnel understand the Lumis 150 VPAP ST device. Click here to download the manufacturer's flight safety declaration.

When using the device on a plane, turn on the Airplane Mode and make sure the humidifier is completely empty and inserted into your device. The device will not work without a humidifier inserted.

Q: What do I need to know about power compatibility when travelling to a different country?

A: If you're travelling to a country with a different line voltage, you may need a different power cord or an international plug adaptor. Contact your home care provider for more information.
