⚠ WARNING
DO NOT use the equipment without a healthcare professional's approval or prescription. DO NOT adjust settings without professional guidance. Read the manual thoroughly before use.
ResMed

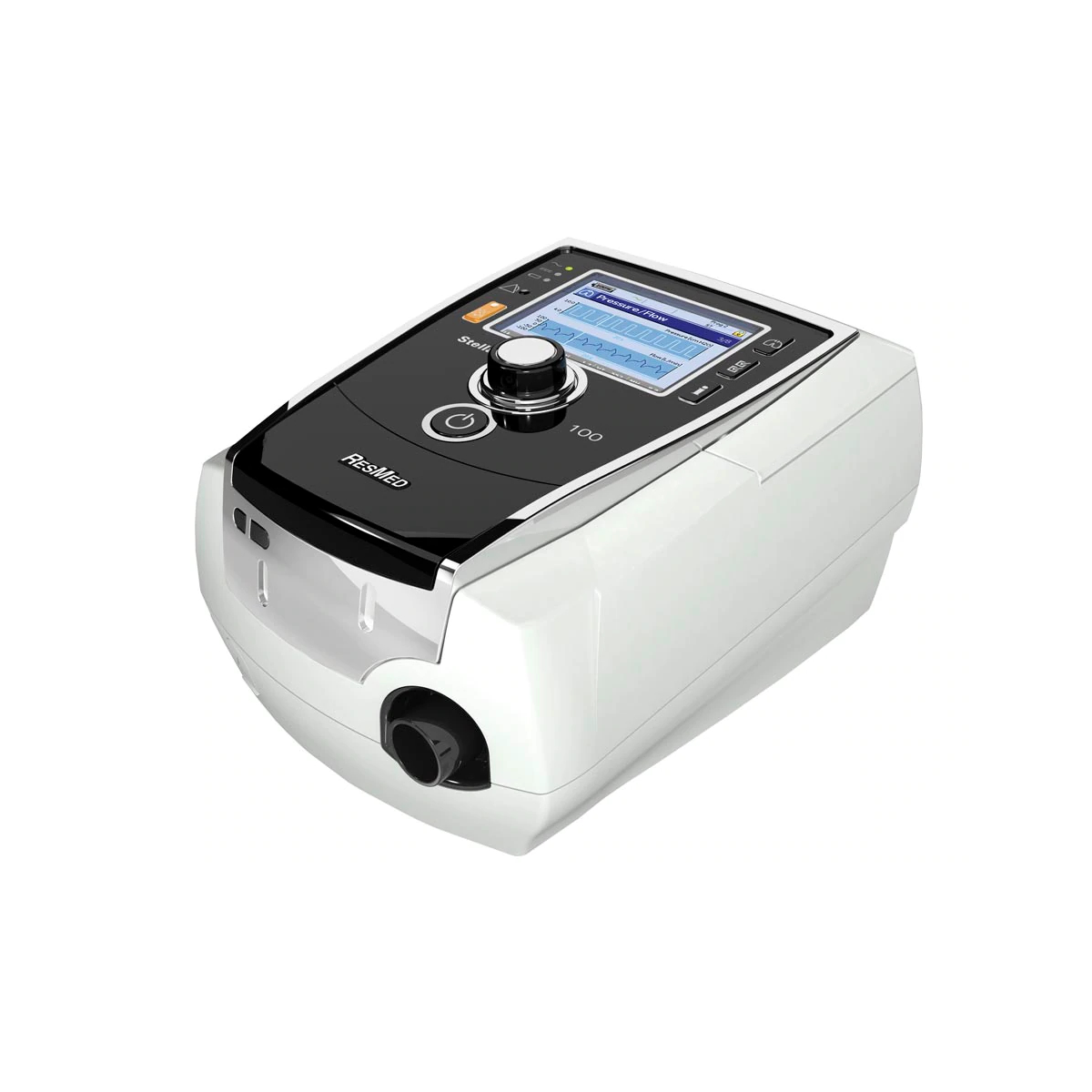

Stellar 100 Ventilator
Stellar 100 Ventilator
SKU:24164
Low stock
Couldn't load pickup availability
ResMed Stellar 100 is a versatile ventilator with a comprehensive range of therapy modes, catering to a diverse array of adult and paediatric patients with evolving respiratory needs. Designed for both non-invasive and invasive use, the Stellar is suitable for a wide range of patients, from those in the hospital to chronic patients at home with conditions such as COPD, NMD, and OHS. This versatile system was created with the end-users in mind, providing top-quality care for a variety of respiratory conditions.
What's in the box
What's in the box
Device
Hypoallergenic Air Filter
AC Power Cord
Carry Bag
2 m Air Tubing
ResMed USB Stick
Low Pressure Oxygen Connector
User Manual
Warranty
Warranty
The manufacturer warrants the unit to be free from defects in materials and workmanship under normal use and operation for a period of two (2) years from the date of purchase. This warranty does not cover the accessories. Any defective part(s) will be repaired or replaced at the manufacturer's option if the unit has not been tampered with or used improperly during that period.
This warranty does not cover damage caused by accident, misuse, abuse, alteration, water ingress, or other defects not related to material or workmanship, and is not extended to the cost of labour incurred in repairing or replacing defective part(s).
To initiate a warranty claim, you can contact us at order-support@respmart.com with "WARRANTY CLAIM" in the subject line. We may reach out to verify the claim before issuing a replacement or return approval.
For approved warranty claims, we’ll take care of the shipping cost to send your replacement or repaired product. We kindly ask that you cover the cost of sending the original product back to us for inspection and verification.
Shipping
Shipping
We at Respmart.com make every effort to ensure you have a smooth and enjoyable shopping experience, including timely order processing and delivery. All orders placed are processed promptly. We make every effort to process and ship your order within 3 business days from the date of purchase. If you have any questions or concerns regarding the status of your order, please contact our support team at order-support@respmart.com
Kindly refer to our Shipping Policy for full details and conditions here.
Return
Return
We at Respmart.com make every effort to ensure that the product you purchase arrives in perfect condition. However, in the unlikely event of a damaged, defective or wrong item delivered, please inform customer service via email on order-support@respmart.com within 48 hours of the delivery along with images of the delivered product.
Kindly refer to our Return and Refund Policy for full details and conditions here.
Operational Care
Operational Care
Place the device on a stable and horizontal surface when operating. Make sure the air vent openings are not obstructed; never place the unit on a soft surface, such as a bed or couch, where the air opening may be blocked
Only use compatible parts and seek an authorised service centre for maintenance needs. Never open the device; there are no serviceable parts within the unit.
Cleaning the Device
To avoid electrical shock, turn off and disconnect the device before cleaning it with a damp cloth and mild household cleaner. DO NOT immerse the device in any fluids.
Rinse the reusable pollen filter every two weeks and replace it every six (6) months.
Wash the humidifier and air tubing in warm water using mild detergent. DO NOT wash in a dishwasher or washing machine.
Rinse the humidifier and air tubing thoroughly and allow to dry out of direct sunlight and/or heat.
Wipe the exterior of the device with a dry cloth.
⚠ Cautions
DO NOT install a wet filter into the device. You must ensure sufficient drying time for the filter.
Share
Want to learn more?
Click below to dive into product specifications, FAQs, manuals, brochures and other similar models — all in one place.
Specifications
-
CPAP: ± 0.5 cm H2O ± 10% of set pressure
Operating pressure range - IPAP: 2 to 40 cm H2O (in S, ST, T, PAC mode); PS: 0 to 38 cm H2O (in S, ST, T, PAC mode); EPAP: 2 to 25 cm H2O (in S, ST, T, PAC mode); CPAP: 4 to 20 cm H2O (in CPAP mode only); Intended tidal volume range: 50 to 2500 mL
Maximum single fault pressure - 60 cm H2O (in all modes)
Maximum breathing resistance under single fault - 2 cm H2O at 30 L/min; 7.2 cm H2O at 60 L/min
Maximum flow - > 200 L/min at 20 cm H2O
Flow accuracy - ± 5 L/min or 20% measured value, whichever is greater
Therapy pressure tolerance - IPAP: ± 0.5 cm H2O ± 10% of set pressure (end of inspiration); EPAP/PEEP: ± 0.5 cm H2O ± 4% of set pressure; CPAP: ± 0.5 cm H2O ± 10% of set pressure
Sound pressure level - 31 dBA ± 3 dBA
Sound power level - 39 dBA ± 3 dBA
Alam Volume Range - High, medium and low priority alarm; minimum 42 dB; maximum 79 dB
-
Storage and transport humidity: 10%–95% non-condensing
Dimensions - 23 cm L x 17 cm W x 12 cm H
Weight - 2.1 kg
LCD screen - Dimensions: 76.9 mm L x 63.9 mm W x 3.15 mm H; Resolution: 320 x 240 pixels
Air outlet - 22 mm taper
Power supply - AC 100/240V, 50/60Hz, 2.2 A. max 65 W
External DC power supply - 24 V, 3 A
Internal battery - Lithium-Ion battery, 14.4 V, 2.75 Ah, 40 Wh; Operating hours: 3 h with new battery under normal conditions
Environmental conditions - Operating temperature: 0°C to 35°C; Operating Humidity: 10% to 95% non-condensing; Storage and transport temperature: -20°C to 60°C; Storage and transport humidity: 10% to 95% non-condensing; Air pressure: 680 hPa to 1,100 hPa; Altitude: 3,000 m
FAQs
Q: Where should I place the device for optimal use?
A: Place the device on a firm, flat surface within easy reach of where you will use it and at a level lower than your sleeping position.
Q: Can I put the system in checked baggage when travelling?
A: No, the carrying case is designed for carry-on luggage only. It will not protect the system if it is put through checked baggage.
Q: What should I do if I'm travelling with the optional humidifier?
A: Do not travel with water in the water tank when using the optional humidifier.
Q: How can I make the security process easier when travelling with the system?
A: The device is safe to be transported and used in flight. There is a note on the bottom of the device stating that it is medical equipment and suitable for airline use. Bringing the manual may also help security personnel understand the Stellar 100 V device. Click here to download the manufacturer's flight safety declaration.
When using the device on a plane, turn on the Airplane Mode and make sure the humidifier is empty and inserted into your device. The device will not work without a humidifier inserted.
Q: What do I need to know about power compatibility when travelling to a different country?
A: If you're travelling to a country with a different line voltage, you may need a different power cord or an international plug adaptor. Contact your home care provider for more information.
